ACP SHEET STRIPPING MACHINE

Aluminium Composite Panel (ACP) Recycling Machine

Model: ACP Sheet Stripper / Sandwich Panel Peeling Cutting Machine

Key Specifications:

1. Capacity:

1. • 400-1000 kg/hr

2. Input Sheet Width:

1. • 1.2 meters

3. Power Requirements:

1. • 3 HP
   • 440V, 3-phase

4. Control System:

1. • Variable Frequency Drive (VFD) controlled
   • Allows fine-tuned speed control and energy efficiency.

5. Components:

1. • Peeling Mechanism: Efficiently separates aluminium and plastic layers.
   • Discharging Mechanism: Facilitates continuous sheet output post-separation.
   • Rollers & Sprockets: Ensures smooth material movement through the machine.
   • Power Mechanism:
     • Motor & Gearbox: Driven by a belt system to maintain stable operation.

6. Operating Process:

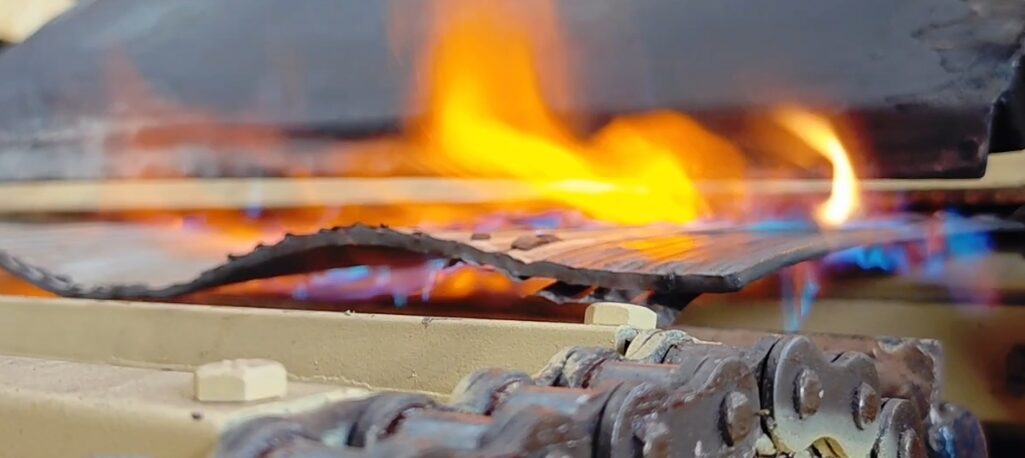

1. • Heating Mechanism: Heats to a preset temperature to loosen the layers for separation.
   • Dry Physical Separation: No water or chemical use, minimizing pollution risks.

7. Advantages:

1. • Eco-friendly: Low noise and pollution.
   • High Efficiency: Fast and effective stripping of aluminium and plastic layers.
   • Low Maintenance: Simple operation, minimal wear and tear due to the dry physical separation process.

This machine contributes to efficient recycling of aluminium and plastic from composite panels, aligning with environmental sustainability goals by reducing waste and promoting resource reuse.
