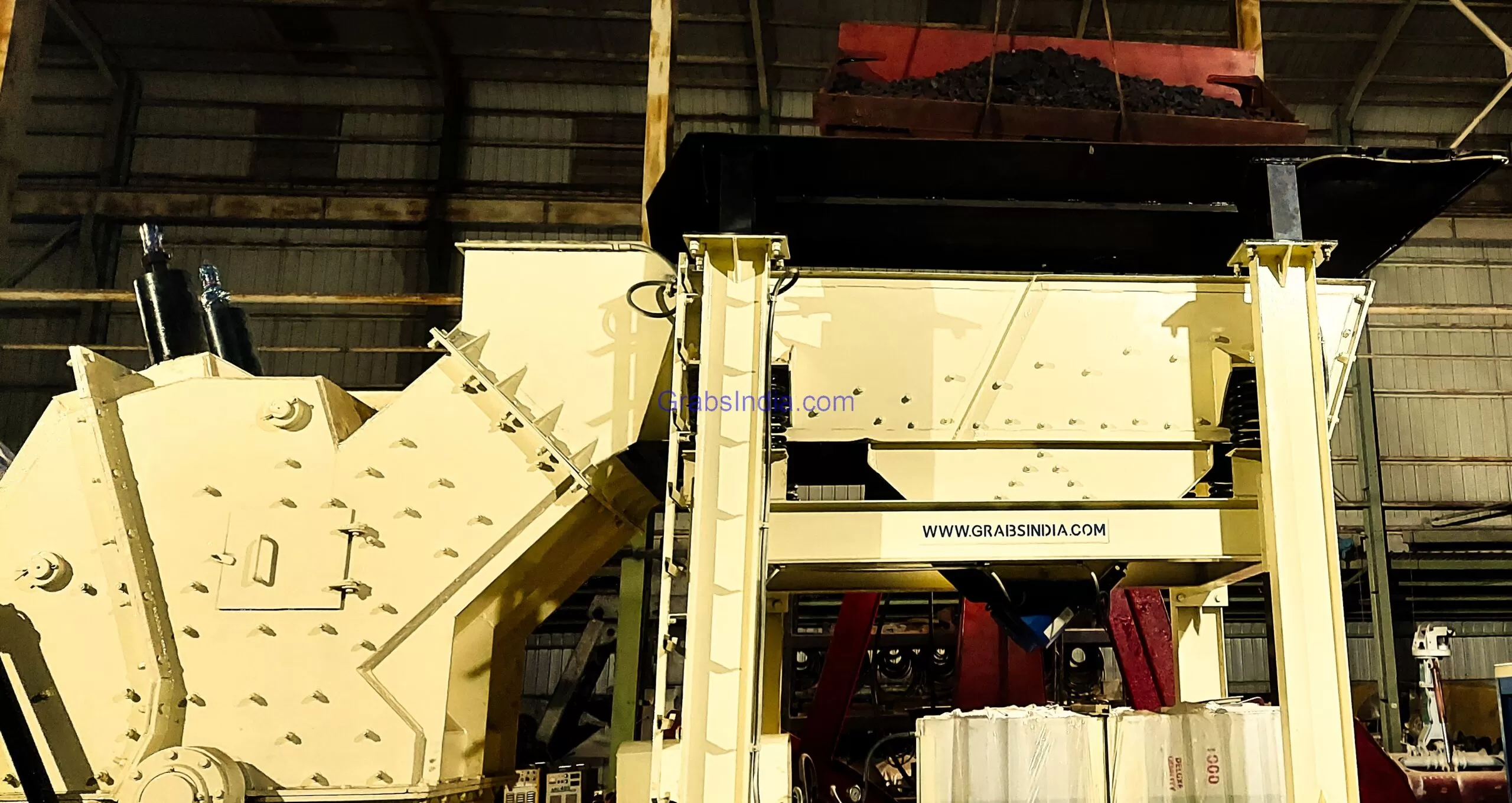

GrabsIndia Mobile Crusher Plant is a semi-automatic, high-capacity machine designed to handle heavy-duty tasks with the following features:

Key Specifications:

• Capacity: 100 tons/hour
• Material of Construction (MOC): Mild Steel & Wear-Resistant Steel
• Input Materials: Coal, Sand, Rock, or other Minerals
• Input Size: Max 100 mm
• Output Size: Min 3 to 5 mm
• Power Supply: 380-440V, 3-Phase, 50-60Hz
• Country of Origin: Made in India

Mobile Crusher Features:

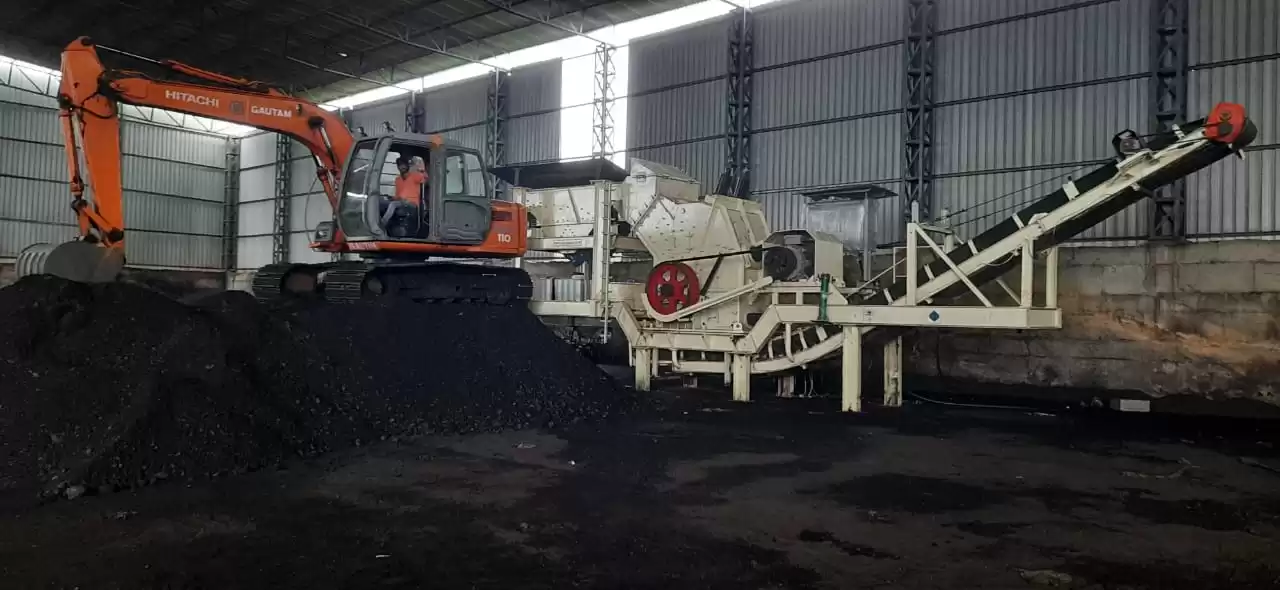

• Mobile and Trailer-Mounted: Can be shifted instantly and set up within a day or two.
• Automation Grade: Semi-Automatic
• Accessories: Includes conveyors, central control panel, metal separators, cabling, lubrication system, and a water misting system for dust control.

Working Principle of Horizontal Shaft Impact (HSI) Crusher:

• The HSI crusher utilizes impact energy to crush materials.
• Driven by a high-speed rotor, blow bars strike the materials, which are then thrown onto impact plates for further crushing.
• The process repeats until the materials reach the desired size and are discharged from the bottom opening.
• The gap between the impact rack and rotor support can be adjusted to change the size and shape of the final product.

HSI Crusher Benefits:

• Simple Structure: Designed for easy maintenance and part replacement.
• Durable Components: High-chromium or manganese hammer and special impact liner plate.
• Energy Efficiency: Capable of efficient hard rock crushing while saving energy.
• Adjustable Product Size: Cubical shape with adjustable size to optimize the crushing circuit.
• Low Operating Costs: Reduces transportation needs, provides low maintenance, and reliable performance.

This mobile crusher is ideal for applications like road construction, railways, power generation, and building materials where versatility.
